Moorhead Offroad Engineering

COMMANDER FORWARD A-ARMS

COMMANDER FORWARD A-ARMS

Regular price $800.00 USD
Regular price Sale price $800.00 USD
Sale Sold out
Shipping calculated at checkout.
MODEL
COLOR

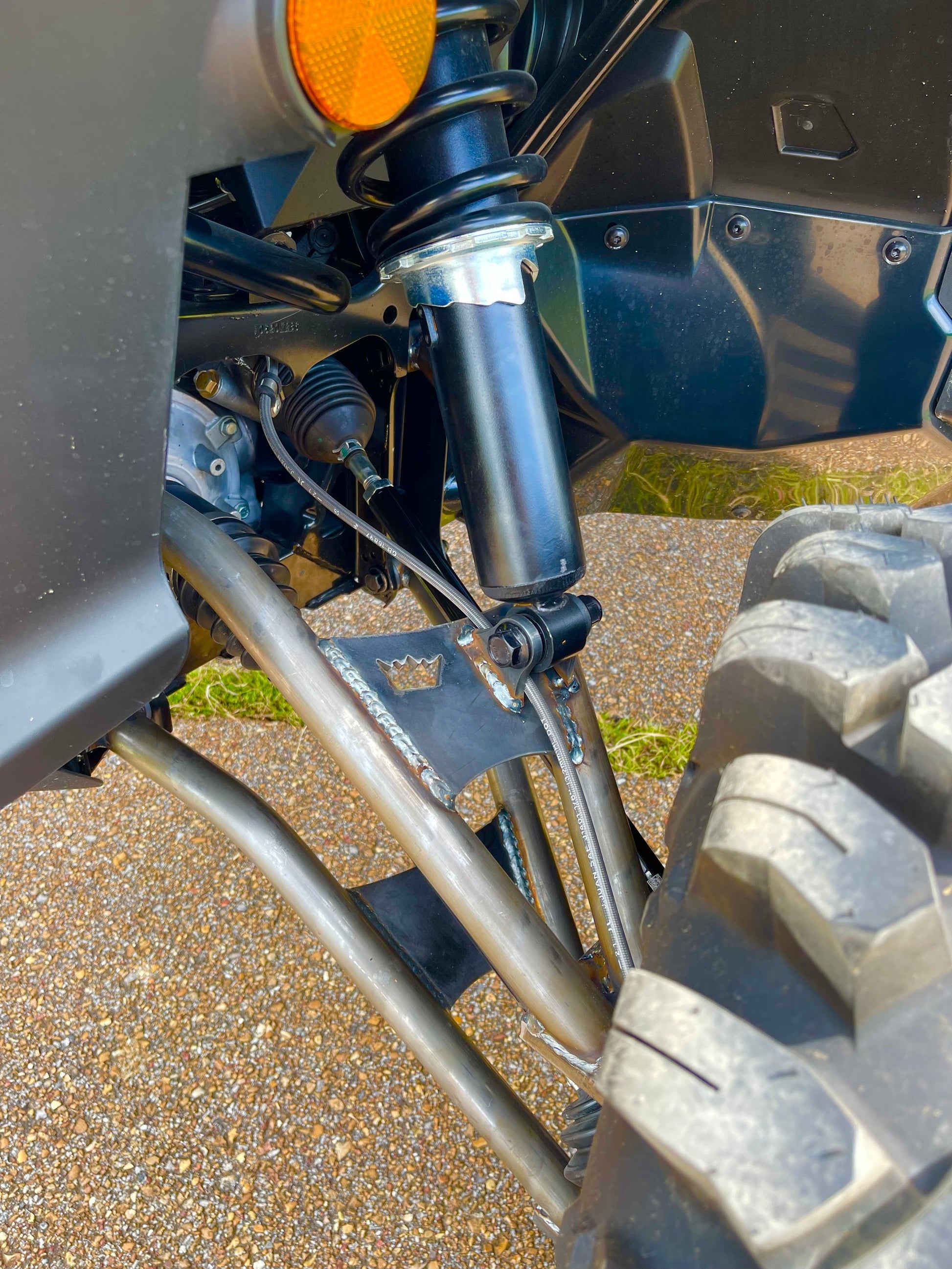

These arms are constructed from 0.250" wall USA DOM and allows for a 35-37" tall tire depending on model. Arms are portal compatible and allow for all OEM hardware to be reused. Arms do not include ball joints (unless selected below), bushings or grease fittings; you will reuse OEM or aftermarket. Kit comes with optional steering stops to prevent oversteering.

**"KELLER BALL JOINTS (CUPS INSTALLED)" means that we will press the cup housing into the arm, the end user will assemble the ball joint cap and pin. No pressing required.**

INCLUDED:

PASSENGER SIDE UPPER ARM
PASSENGER SIDE LOWER ARM
DRIVER SIDE UPPER ARM
DRIVER SIDE LOWER ARM
STEERING STOP (2 PCS)

FITMENT:

64" MODEL : (OEM tie rod bar is 14")

2021-CURRENT Commander 1000R XT
2021-CURRENT Commander 1000R XT MAX
2021-CURRENT Commander 1000R XTP
2021-CURRENT Commander 1000R XTP MAX
2021-CURRENT Commander 1000R XMR

62" MODEL : (OEM tie rod bar is 11.5")

2021-CURRENT Commander 700/1000R DPS
2021-CURRENT Commander 700/1000R XT (NON MAX)
2021-CURRENT Commander 1000R DPS MAX


Warranty: Arms are covered under a limited lifetime warranty for original purchaser. All warranty claims must be sent in for examination with purchase date and order number.
