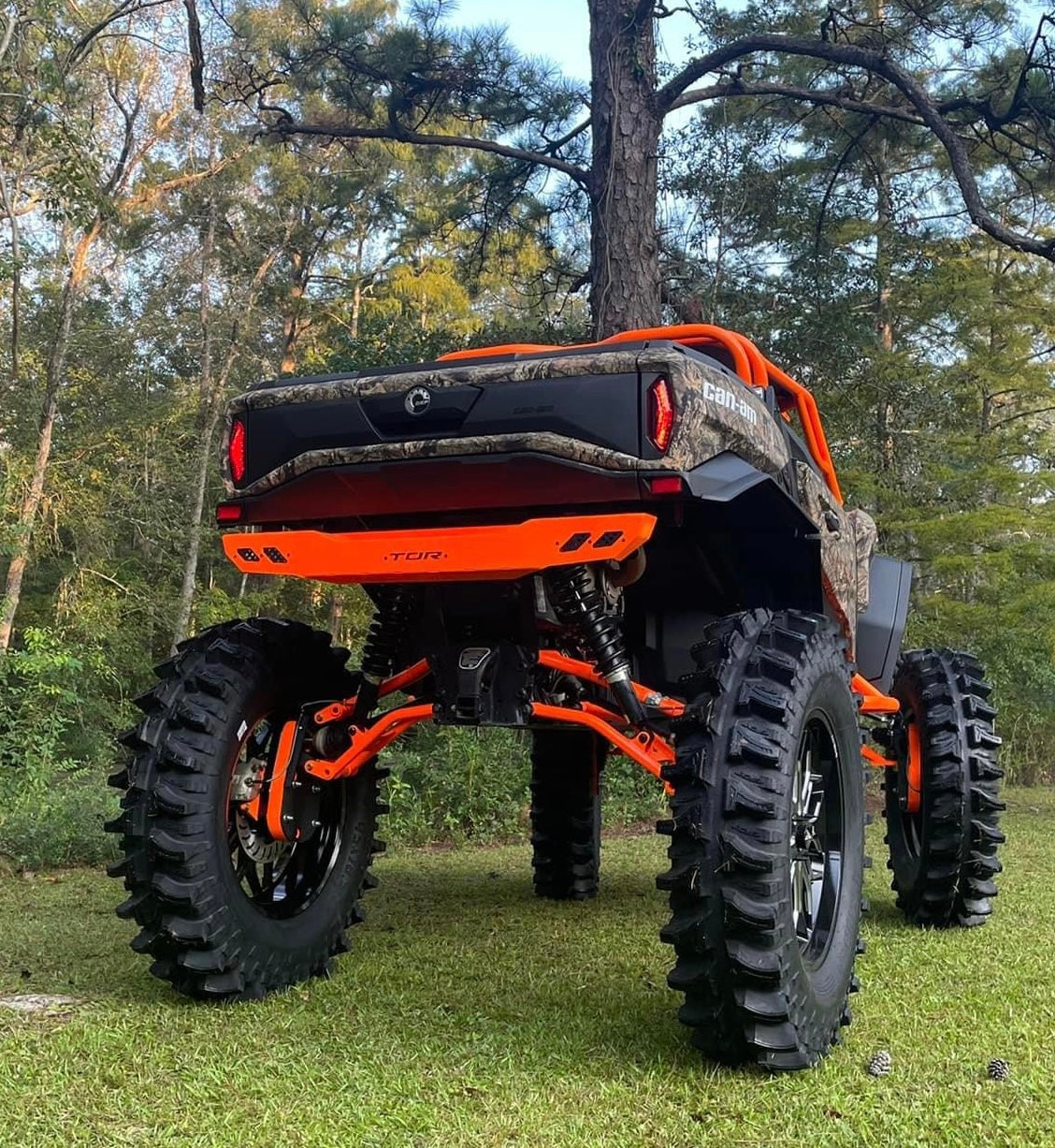

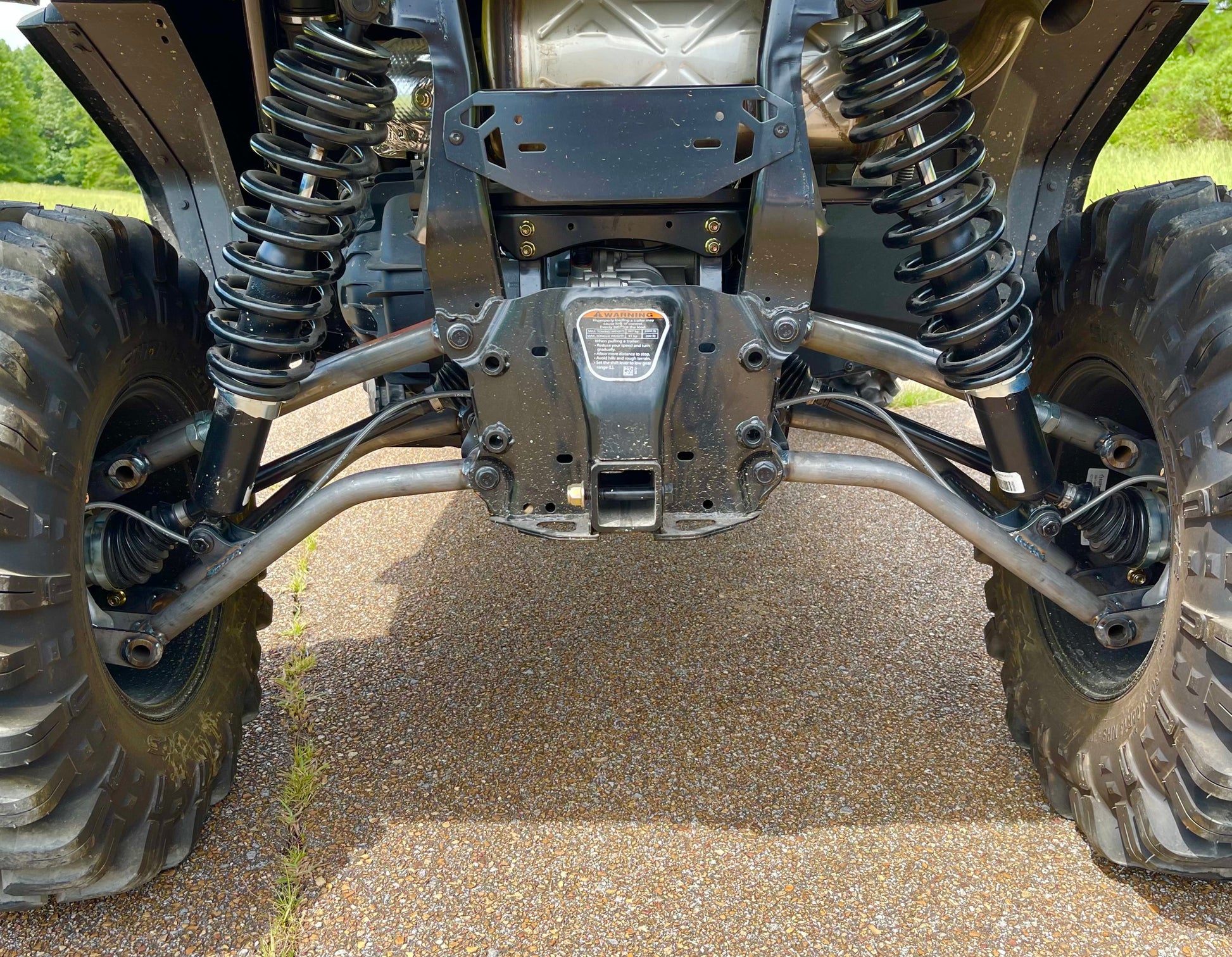

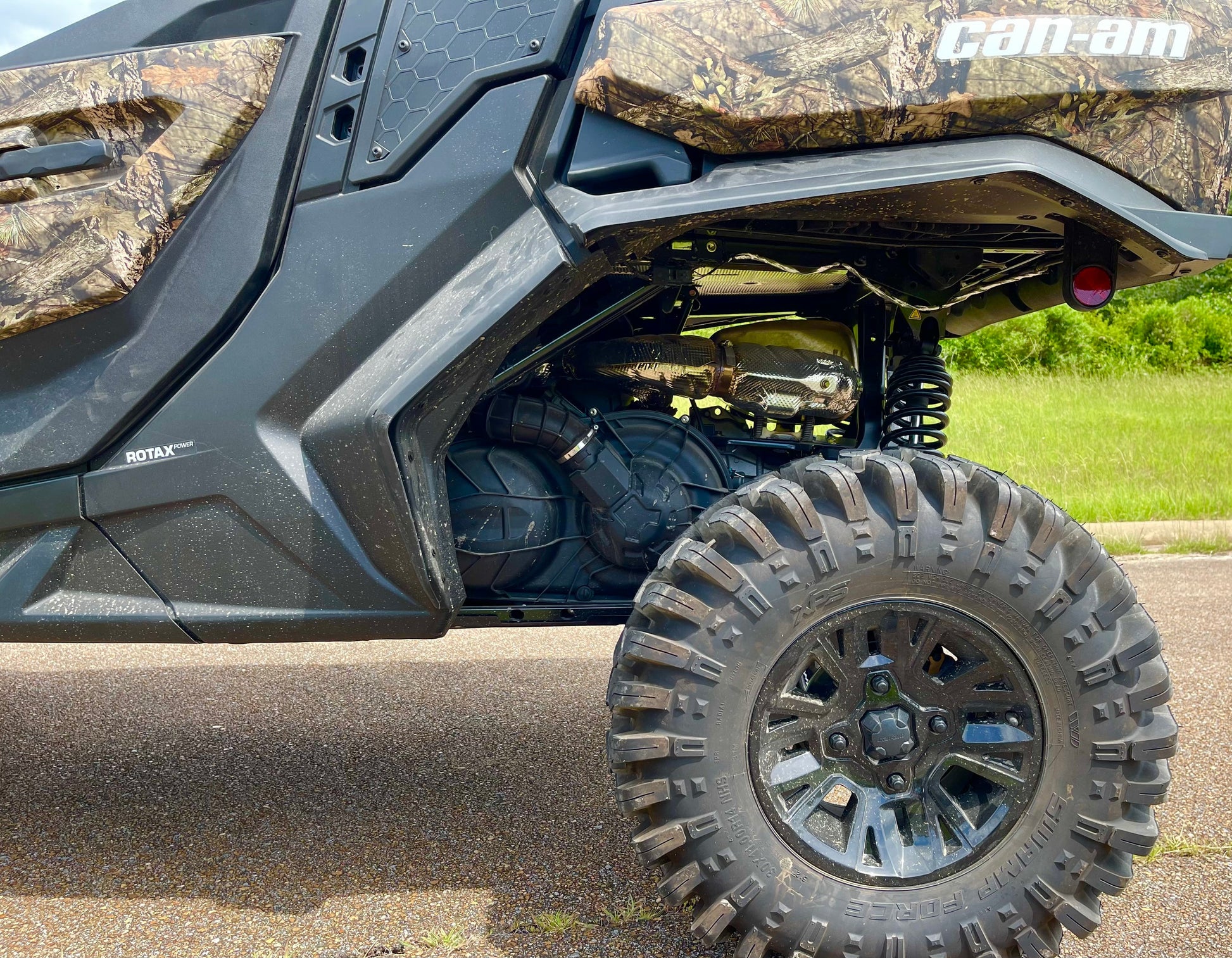

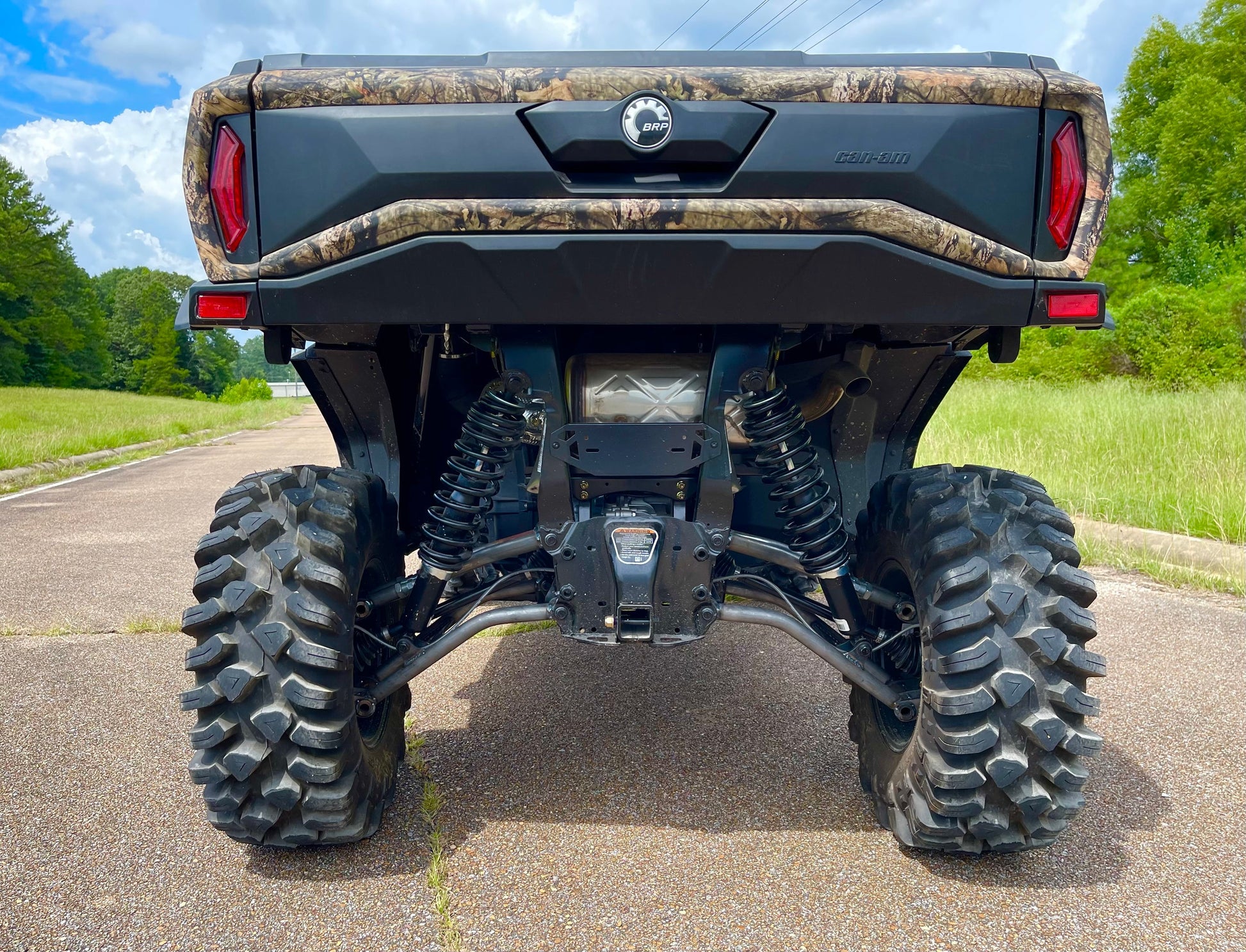

These arms are constructed from 0.250" wall USA DOM and allows for a 35-37" tall tire depending on model. Arms are portal compatible and allow for all OEM hardware to be reused. Arms do not include bushings (unless selected below) or grease fittings. Both upper arms utilize our patented adjustability to allow the camber to be adjusted at ride height without removing the arms from the machine.
**OEM bushings cannot be reused out of the factory a-arms**
INCLUDED:
PASSENGER SIDE UPPER ARM
PASSENGER SIDE LOWER ARM
DRIVER SIDE UPPER ARM
DRIVER SIDE LOWER ARM
UPPER 110mm HUB BOLT/NUT (2 PCS)
FITMENT:
64" MODEL : (OEM tie rod bar is 14")
2021-CURRENT Commander 1000R XT
2021-CURRENT Commander 1000R XT MAX
2021-CURRENT Commander 1000R XTP
2021-CURRENT Commander 1000R XTP MAX
2021-CURRENT Commander 1000R XMR
62" MODEL : (OEM tie rod bar is 11.5")
2021-CURRENT Commander 700/1000R DPS
2021-CURRENT Commander 700/1000R XT (NON MAX)
2021-CURRENT Commander 1000R DPS MAX
Warranty: Arms are covered under a limited lifetime warranty for original purchaser. All warranty claims must be sent in for examination with purchase date and order number.
