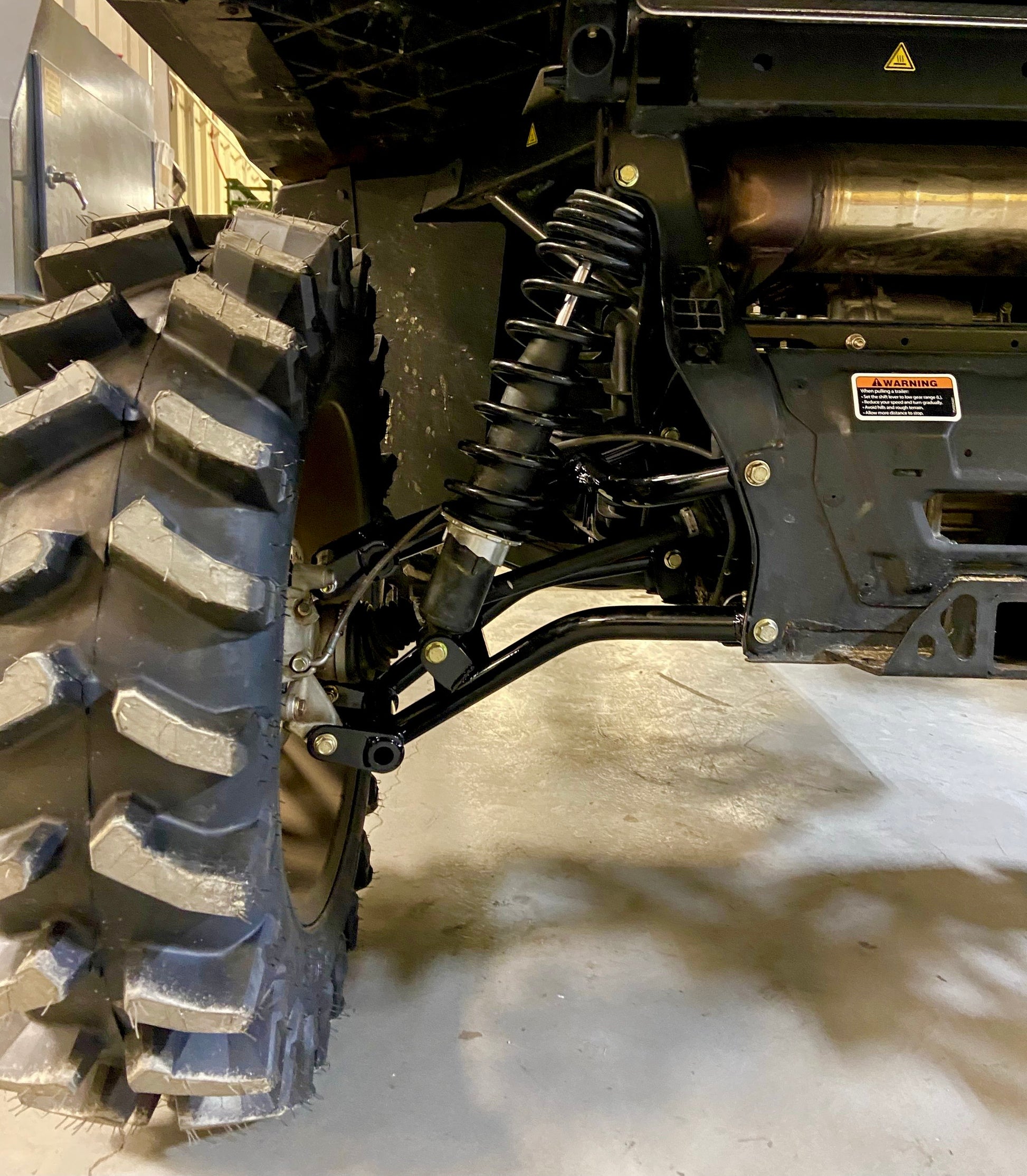

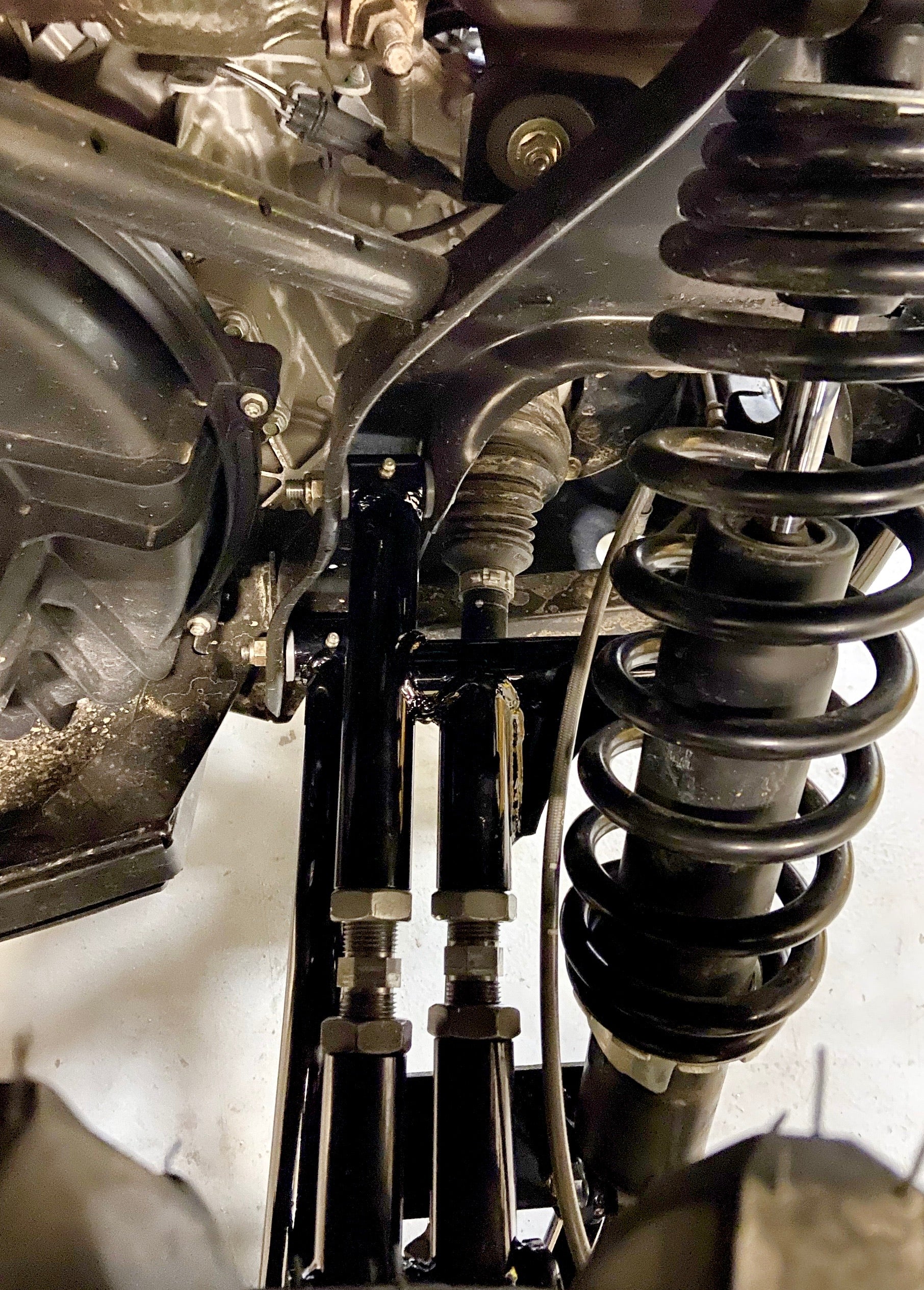

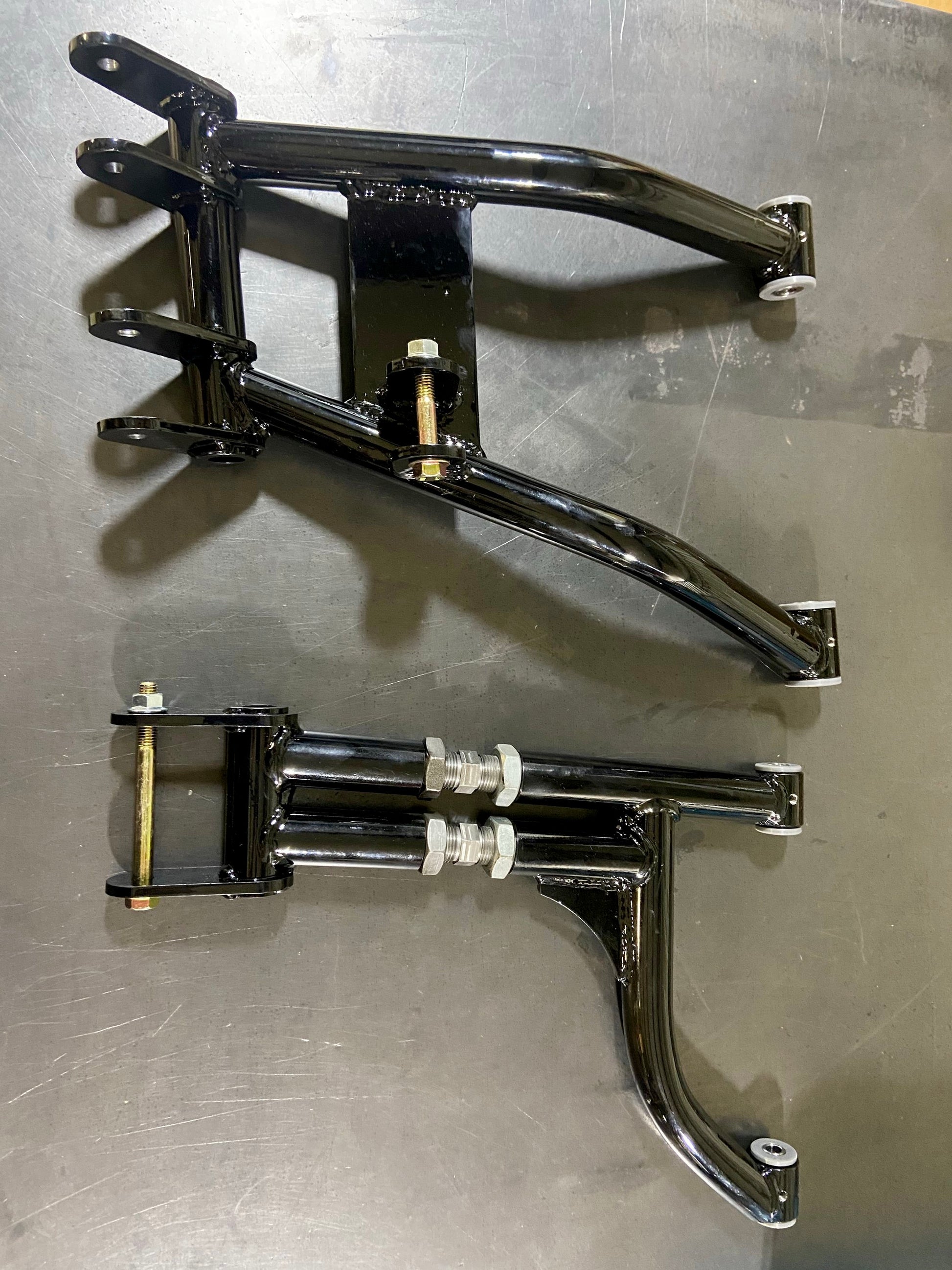

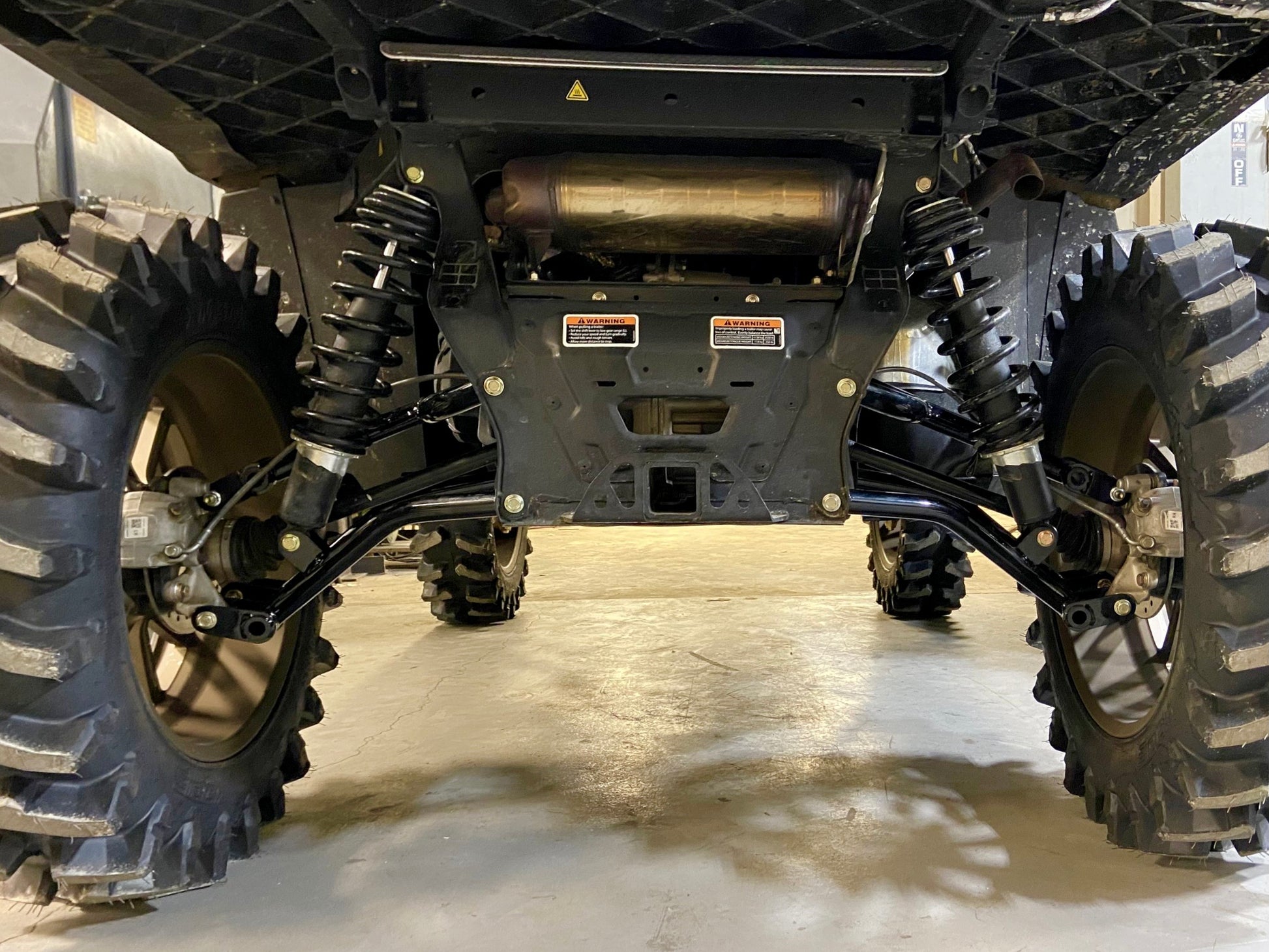

These control arms are constructed from 0.250" wall DOM and allow for a 35-37" tall tire depending on model. Arms are portal compatible and allow all OEM hardware to be reused. Arms do not include bushings (unless selected) or grease fittings; you will reuse OEM or aftermarket. Both upper arms utilize our patented adjustability to allow camber adjustment at ride height without removing the arms. The raked option moves rear tires backwards 1.75", increasing room between tire and fender.
What's Included
Passenger side upper arm
Passenger side lower arm
Driver side upper arm
Driver side lower arm
Upper 110mm hub bolt/nut (2 pcs)
Fitment
65" Model (OEM tie rod bar 13")
2018–Current Defender XMR
2018–Current Defender Lonestar
2018–Current Defender factory cab
2020–Current Defender Limited
64" Model (OEM tie rod bar 11.5")
2020–Current Defender HD10 DPS
2020–Current Defender HD10 XT
62" Model (OEM tie rod bar 10")
2016–2017 All Defender models
2016–2019 Defender HD5
2018–2019 Defender HD10
2018–2021 Defender HD8
2022–Current Defender HD7
2022–Current Defender HD9
Does not fit Defender HD11 or HD10XU
Warranty Arms are covered under a limited lifetime warranty for the original purchaser. All warranty claims must be sent in for examination with purchase date and order number.
